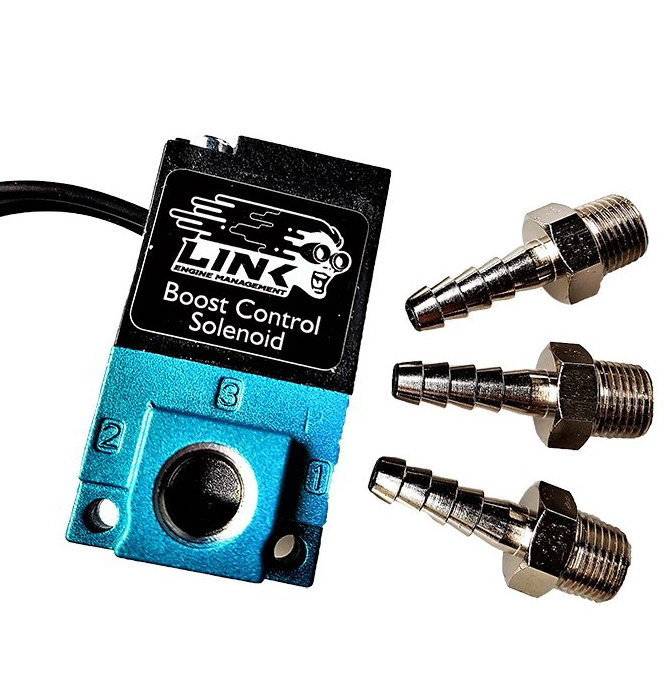

Link ECU Boost Control Solenoid - 3-Port (3BCS)

3-Way Boost Control Solenoid

High-performance Link ECUs for Tuning & Motorsport - Plug & Play, CAN-Bus, Data Logging & more. Discover G4X & G5 models now!

More boost pressure? Of course - with the 3-Port Boost Control Solenoid!

3-Port Boost Control Solenoids are the standard for most boost control applications. They allow precise control and can increase the boost pressure to about 2 to 3 times the spring pressure of the wastegate. For applications with higher boost pressure, we recommend our 4-Port Boost Control Solenoid.

Features:

• Compatible with all Link ECUs
• Usable with one or more wastegates (via T-piece)
• Compatible with internal or external wastegates
• Fast and consistent response times
• High switching force
• MAC 35 series - robust, reliable, and durable
• Short stroke, high flow
• Balanced seal - insensitive to pressure fluctuations

Note: We recommend starting with a PWM frequency of 20Hz. A detailed guide for setting up boost control can be found in the help file of the free PCLink software.

Technical Data:

• Series: MAC 35
• Maximum pressure: 120PSI
• Connection: 1/8” BSPPL
• Voltage: 12V DC (5.4W)
• Cable length: 45cm (18”)
• Includes 3x 1/8” BSP hose barbs for easy connection
